Frame Number VSW5GVTCRGSSP0009
Entry Date: November 18, 2024
Exit Date: November 18, 2025
Entry Type: Sinotrans
Frame Mileage:

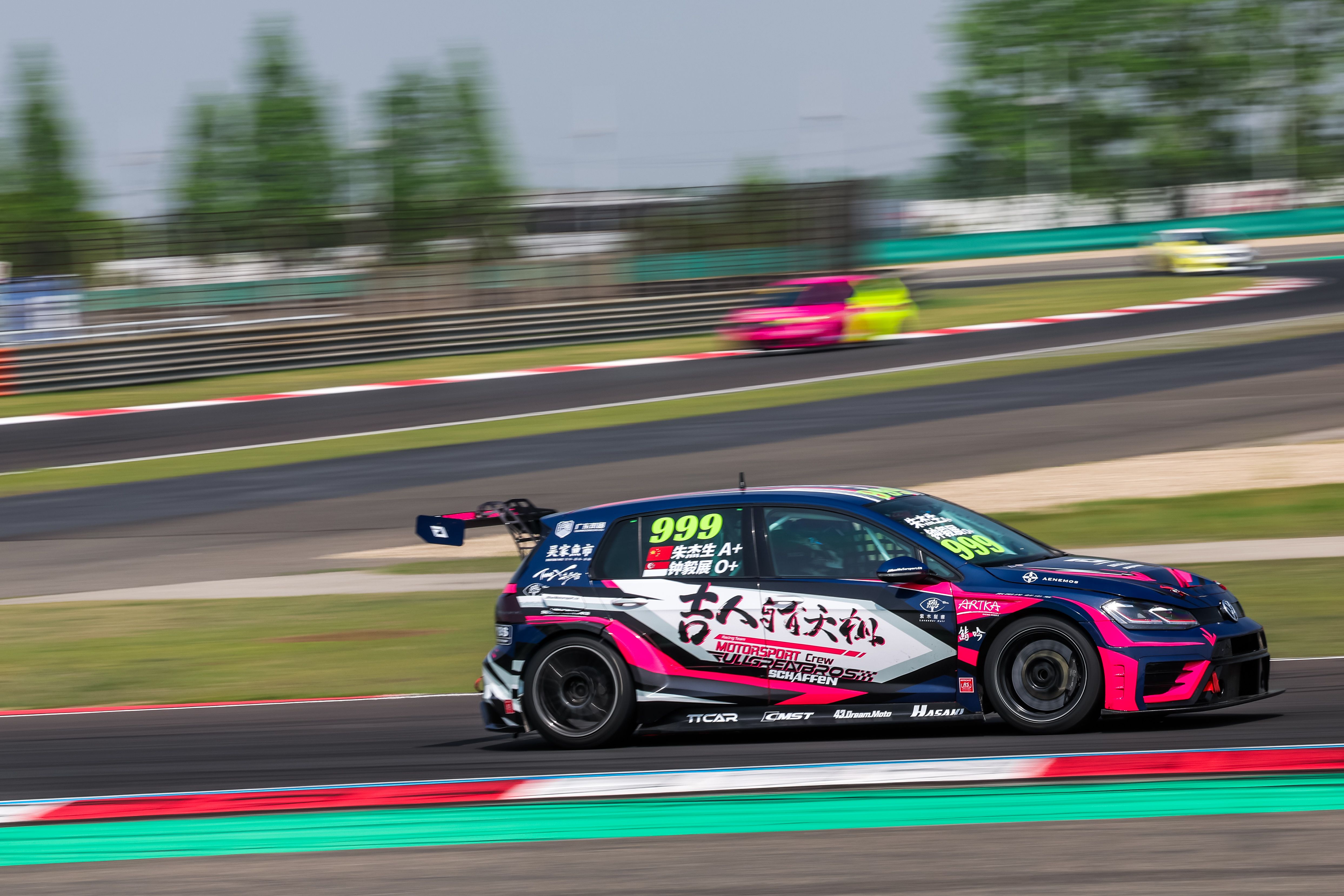

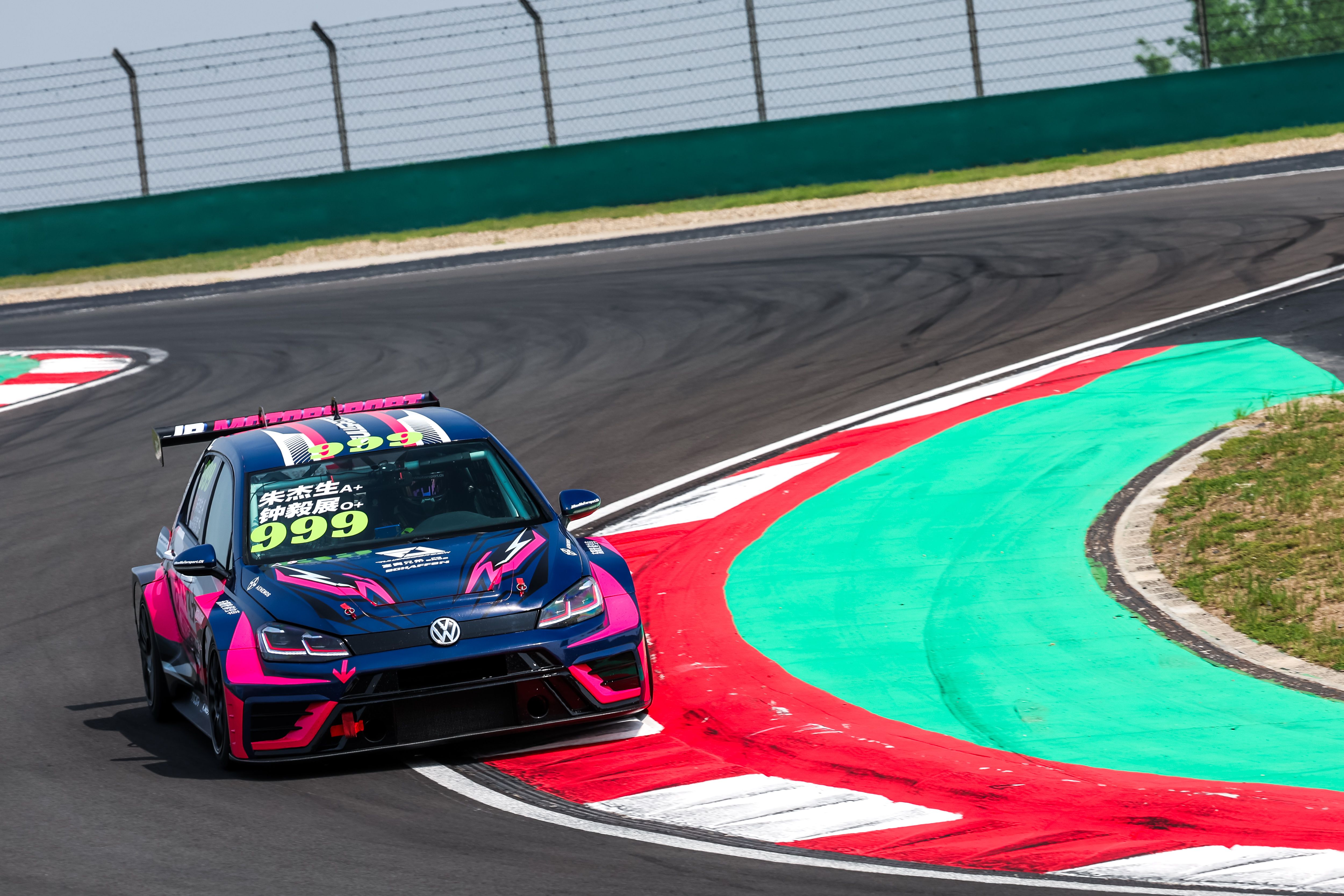

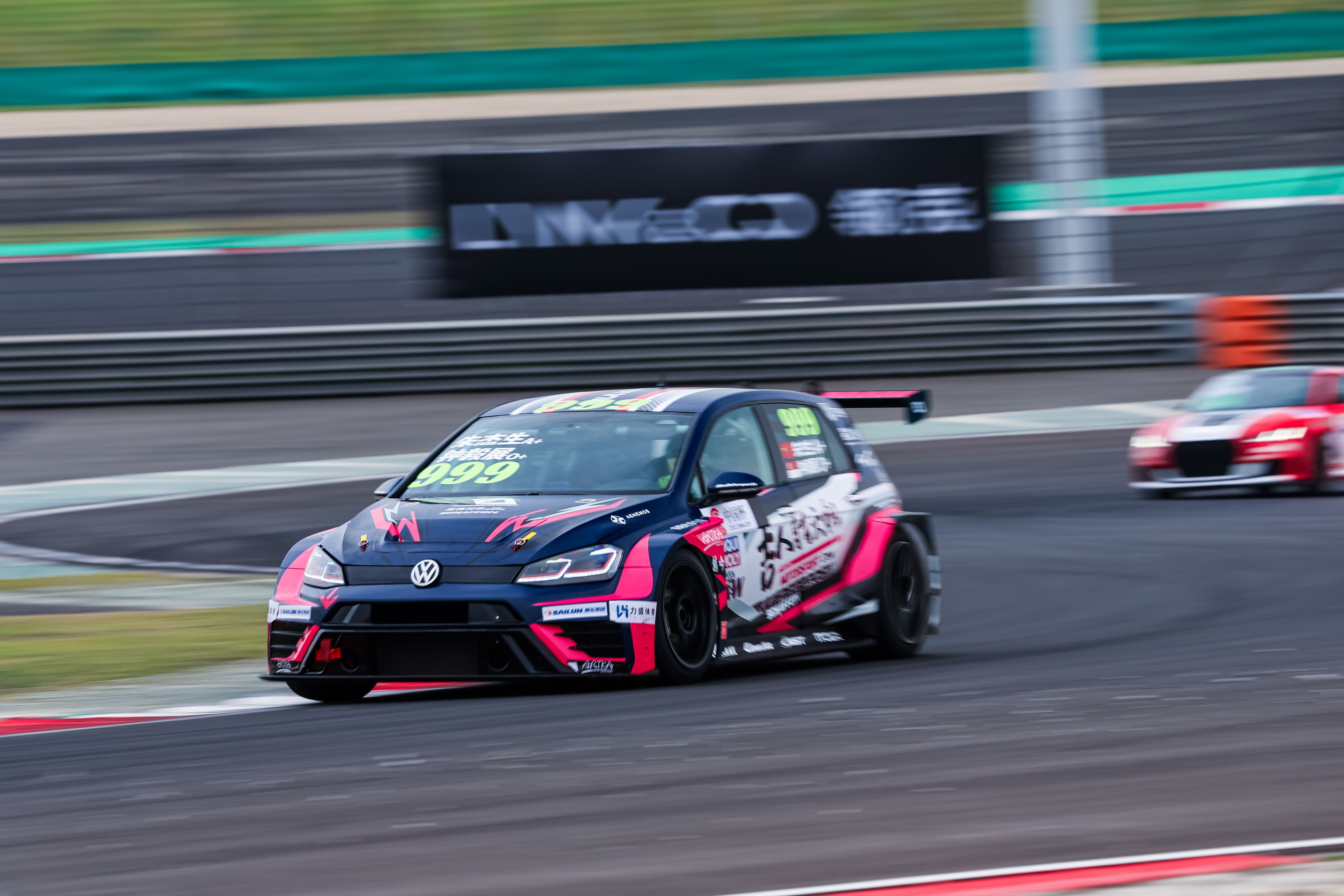

"Previous data cannot be verified. After the team purchased it in October 2023, it has been used for a total of 1,600 kilometers. In 2025, it participated in the CTCC Shanghai Station, with a total of 600 kilometers of training and racing."

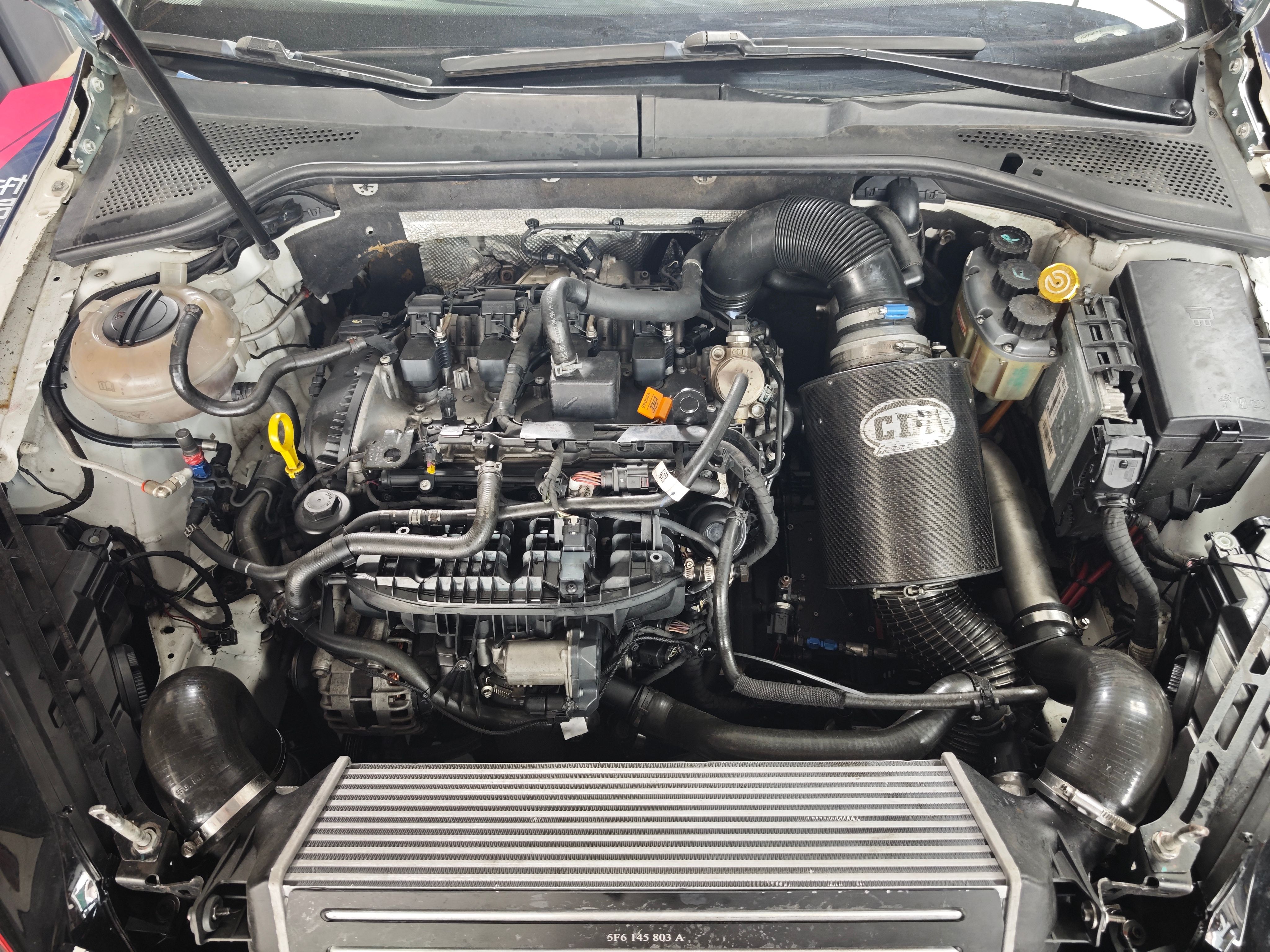

Engine Mileage:
In May 2023, it underwent engine maintenance at Geshitu Zhaoqing and has been used for 1,600 kilometers.
Turbine was replaced with a new turbine in April 2025 and has been used for 600 kilometers since then." Gearbox Mileage:
In April 2024, the gearbox was replaced with all seals, bearings, axle 2 end gears, 3rd and 4th gear gears, and synchronizer rings. In October 2024, the gearbox was disassembled for routine inspection and maintenance, including replacement of the 3rd gear synchronizer ring and internal cleaning of the gearbox. The gearbox was used for 400 kilometers after the update.
Before the start of the 2025 season in March, the gearbox was re-inspected and the axle 2 end gears were replaced.
The 2nd gear gear was completely new.
The oil seal was replaced.
The vehicle was driven 600 kilometers after the replacement.

Wheels:
Including 14 on the vehicle.
FIA Equipment Certification Expiration Date:
Seats 2029

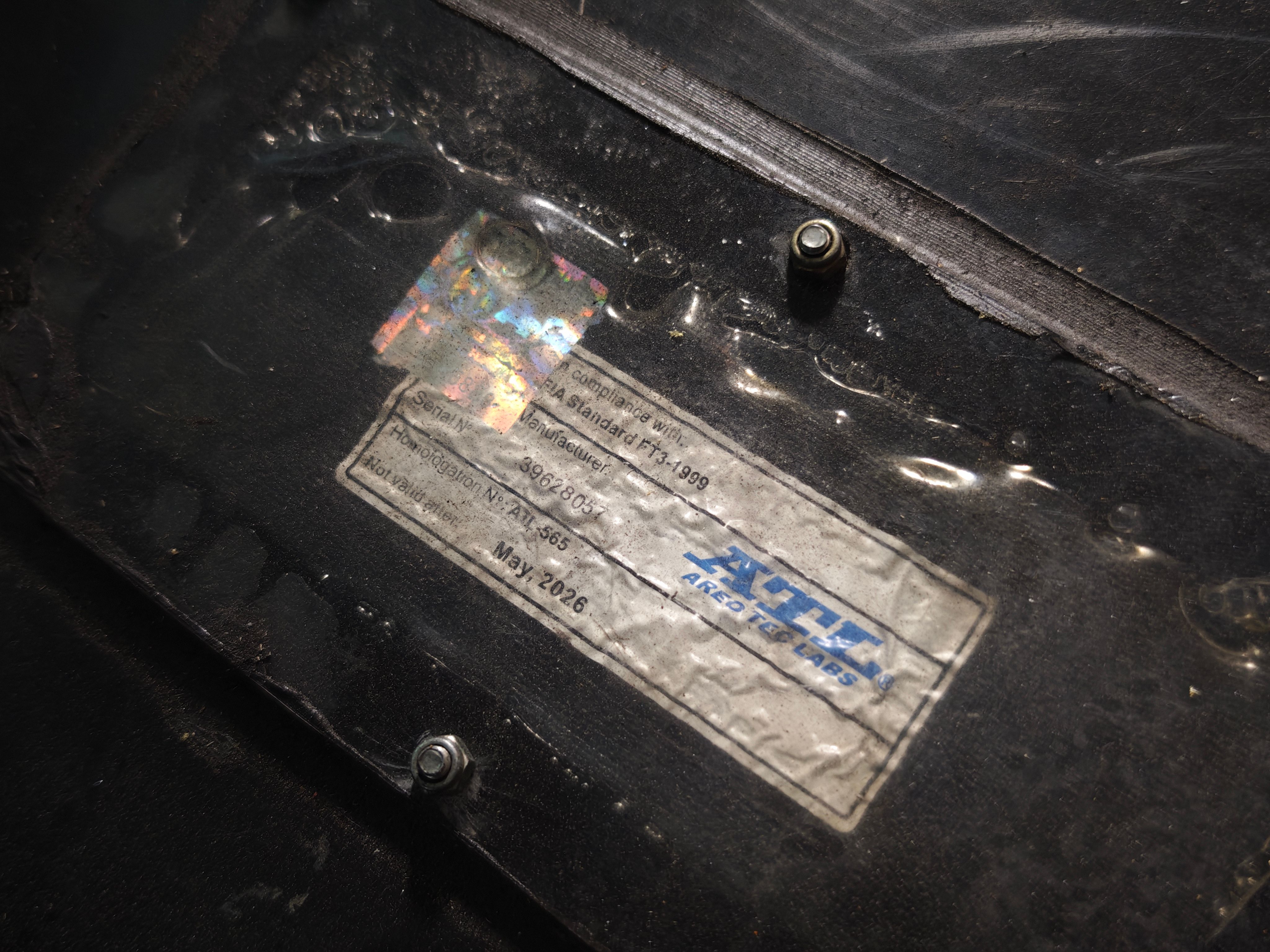

Fuel Tank 2026

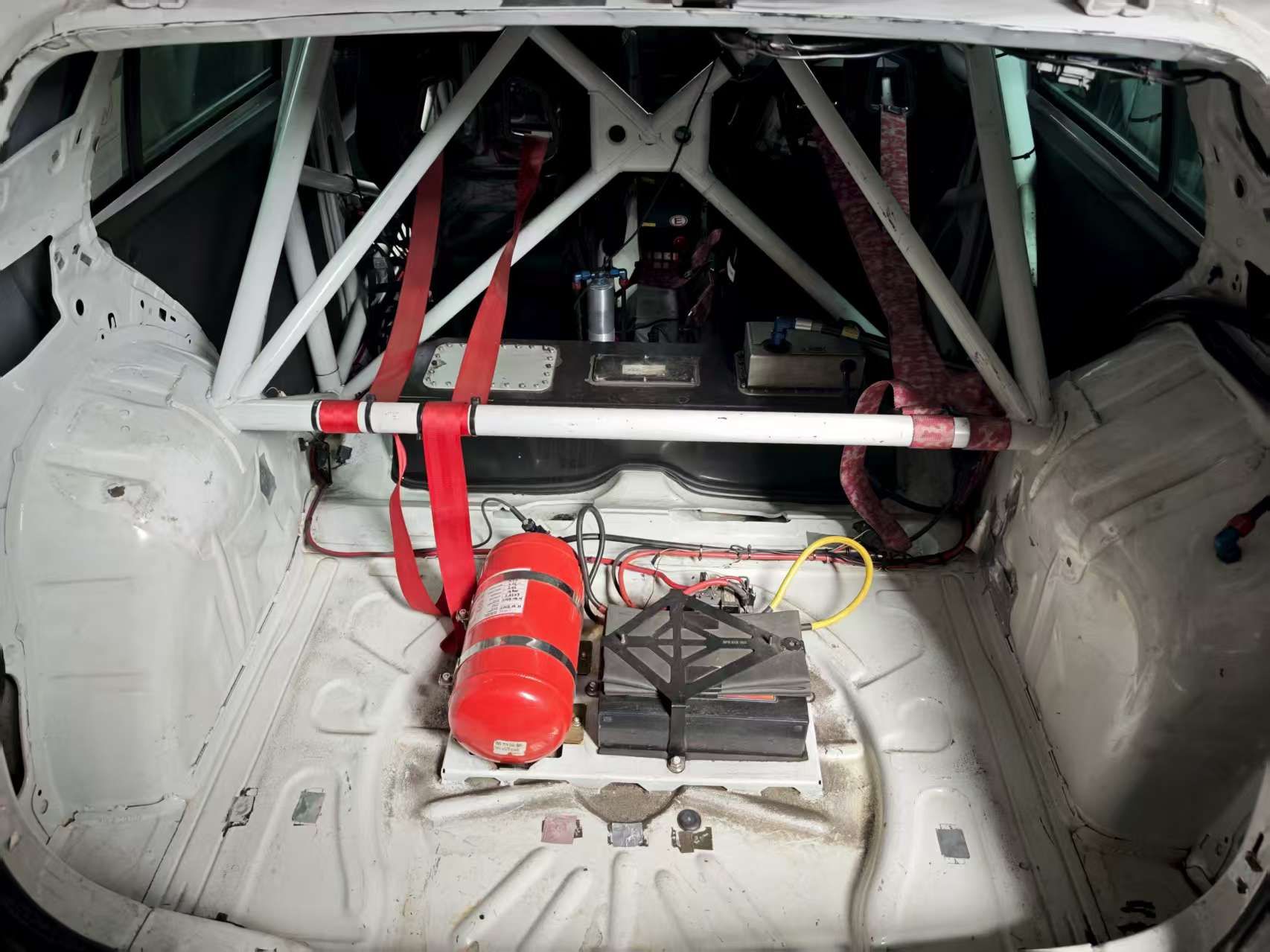

Fire Extinguisher 2026

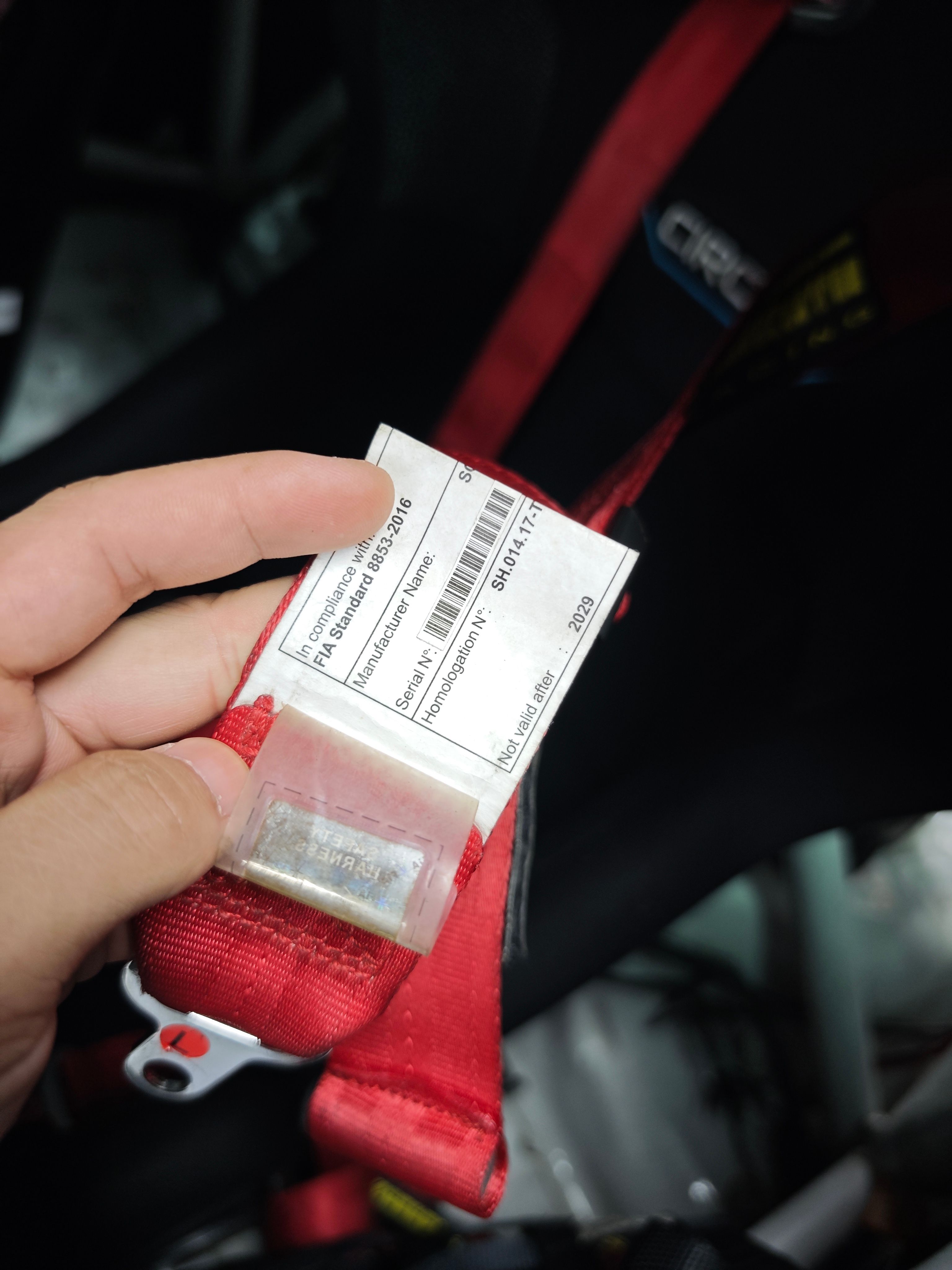

Seat Belts 2029
Notes on vehicle components:
Spark plugs replaced at the October 2024 Zhuzhou race
Front and rear brake pumps: Replaced with new parts at the Zhuzhou race
Right front triangular arm: Replaced with new parts at the Zhuzhou race
Steering rod: Replaced with new parts at the Zhuzhou race

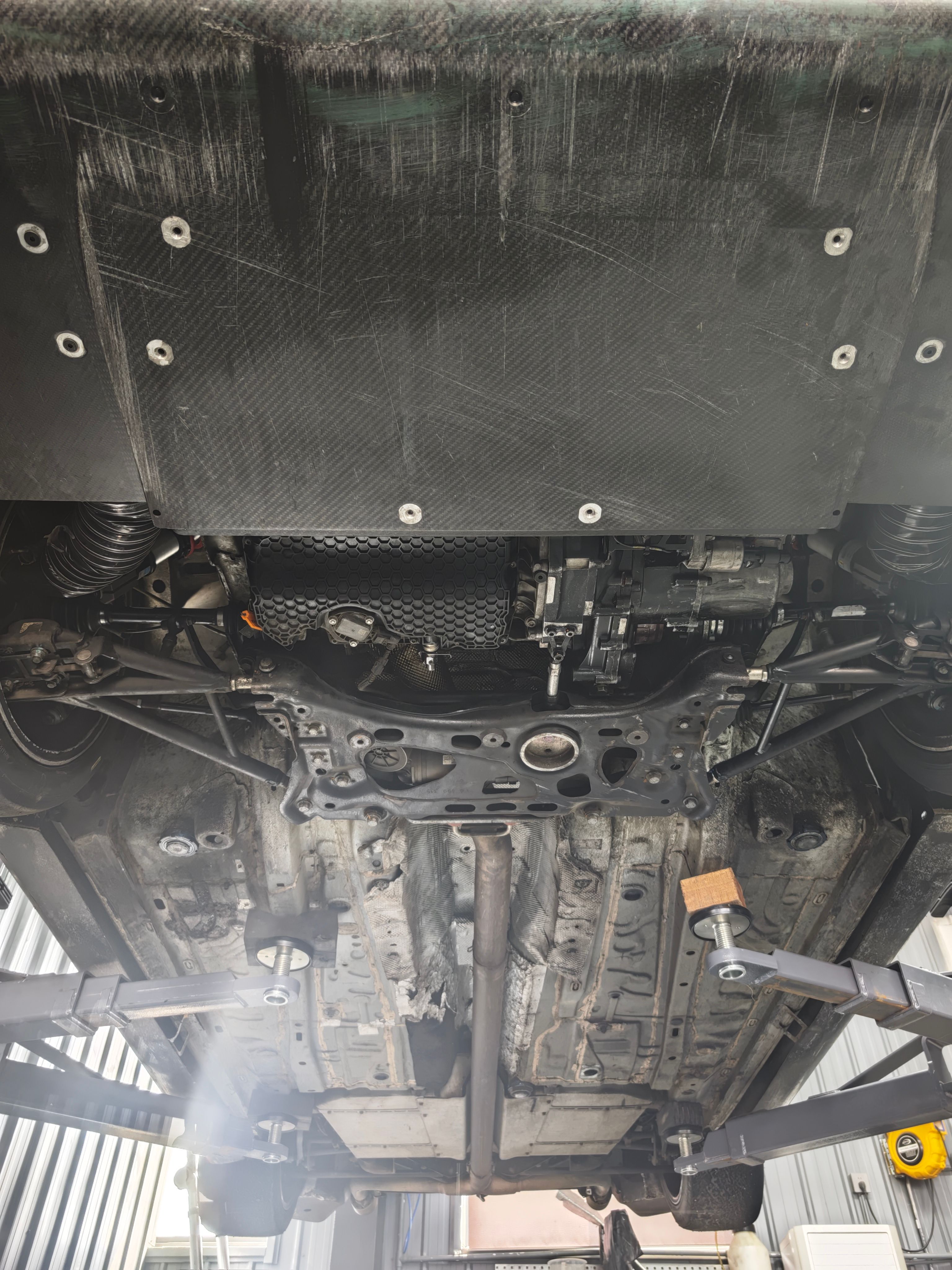

Front shovel: Replaced with a new front shovel (genuine) at the September 2024 Daqing race
Front bumper: Replaced with a new one (domestic) after the 2025 Shanghai race
Gearbox radiator: Replaced with a new one (genuine TCR) after the 2025 Shanghai race
Intercooler: Replaced with a new one (genuine TCR) after the 2025 Shanghai race Replaced with a new one after the Shanghai race (genuine TCR)
Radiator: Replaced with a new one after the 2025 Shanghai race (customized all-aluminum thickened version, original water temperature is high in summer)
Headlights: Replaced with a new one after the 2025 Shanghai race (domestic GTI with daytime running lights)
Starter motor: Replaced with a new one after the 2025 Shanghai race (genuine TCR)
Left front swingarm: Replaced with a new one after the 2025 Shanghai race (genuine TCR)
LSD bottom bracket flange: Replaced with a new one after the 2025 Shanghai race (genuine TCR)
Current vehicle condition: Unrepaired areas noted: Left front fender bracket has a defect, currently secured with a cable tie, but does not affect operation.
Vehicle installation: AIM HD2 HD camera.
Original carbon fiber front shovel, genuine, repairable, pending repair.
Front bumper, used, genuine.
Headlights, 7.0 version, used, genuine, slightly damaged.
Rear bumper, used, genuine.
Golf front fender, 7.0 version, used, genuine.
Golf front fender, 7.5 version, used, domestically produced.
Golf rear door lower surround, used, genuine.
Front wheel bearing with screw, used, spare.
Axle shaft, used, spare.
Spark plugs, used, spare.
Intercooler pipe, used, spare.
Radiator pipe, used, spare.
Front shovel tie rod, new, spare.
